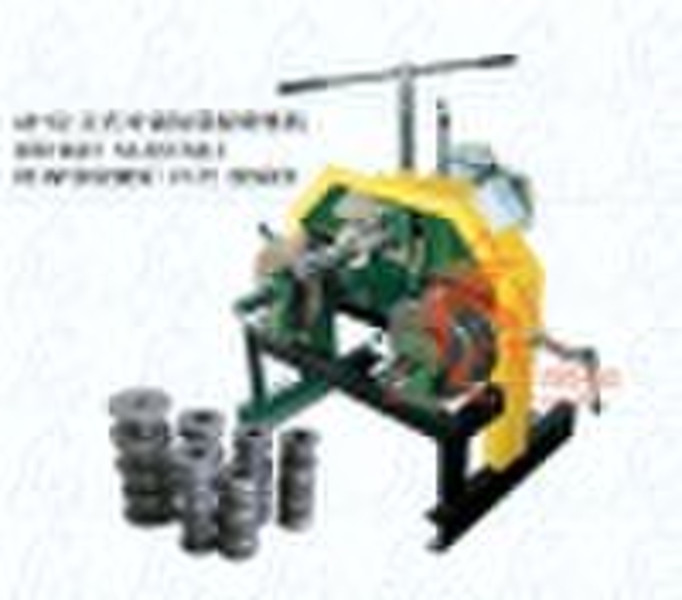

AB-C2 Upright Adjustable Reinforcements Pipe Bende

The machine is the second generation of AB-C1 General Electric Pipe Bender. Compared with the first generation AB-C1 bender, the space length of the two driving shafts of the machine is adjustable, thereafter we can bend various diameter parts: round tube, square tube, rectangular tube, as well as large and small diameter arc and round products. Owing to the adjustable transverse distance of the two shafts, it can process thick and large tube easily. In operation we can get arc and round parts with different diameters by controlling the press-down sizes of the driven roller. The machine has large processing ability, and can be used extensively and laborsaving. There are 9 kinds of dies as the machine attachments, including 8 sets of square tube dies: 15×15mm, 20×20mm, 25×25mm, 30×30mm, 40×40mm, 50×50mm, 60×60mm, 70×70mm,above dies can be used to bend rectangular pipes, as well as 1 set of straight flat iron bending dies. In addition, there are 9 sets of round tube dies for selection: φ16mm, φ19mm, φ22mm, φ24mm, φ30mm, φ36mm, φ50mm, φ63mm, and φ76mm. ProductTypeAB-C2 Upright Adjustable Reinforcements Pipe BenderWorkingAbilitySquare tube:15mm×15mm-80mm×80mm;Round tuber:φ22mm-φ100mmProcessingFlowerBasketMaterialSize0.6-2.5mmElectricMotorPerformancePower: 1.1 KW (class 6);Electric voltage: 220V/380V;Frequency: 50HZ;Rated current: 2.2AMainFeatures1.Having good applicability, the shaft space length of the driving wheels of the machine is adjustable. 2.The machine, having extensive usage, can process square tube, round tube, rectangular tube, stainless steel tube and flat iron. 3.The advantage of the machine in round tube processing is that it can ensure the processed material having small section deformation. 4.The machine is made with large processing strength and extensive material processing specification.ExternalDimensionlength×width×height=800mm×700mm×700mmNetWeight300GrossWeight330
